Femto社製アンプ用アクセサリー
FEMTO Messtechnik社製「アンプ用アクセサリー（電源、ソフトウェア）」

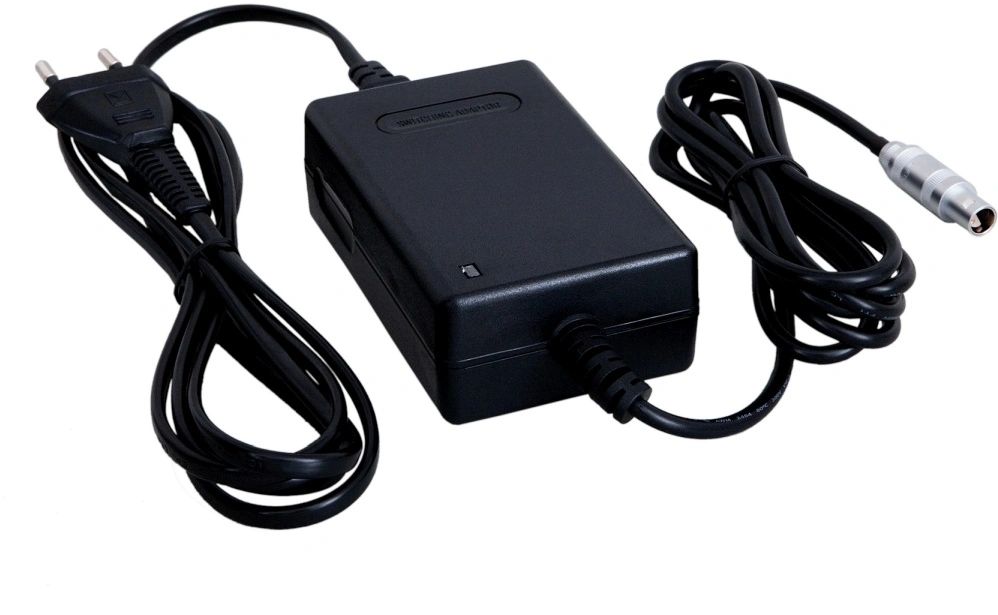

アンプ用電源 PS-15-25-L
FEMTO Messtechnik社製 全製品共通の電源です。
| Model | PS-15-25-L |
|---|---|
| Input Voltage | 100 〜 240 VAC |
| Input Plug | US Plug |
| Output Voltage | ± 15 V, + 400 mA, – 250 mA on LEMO Series 1S, 3-Pin Plug |
| Ripple | 20 mVp-p Typ. |
USBコントロールインターフェース LUCI-10
FEMTO Messtechnik社製 全製品共通のUSBコントローラです。
| Model | LUCI-10 |
|---|---|
| Bus Interface | USB 2.0 (Full-Speed) |
| Digital I/O Interface | 16 Output Lines, 3 Opto-Isolated Input Lines |
| Supply | PS USB Bus-Powered |
| Connectors | USB Type A and D-Sub, 25 Pin, Male |
| Case | Zinc Die-Cast Hood, Nickel Plated, with Jack Screws, Weight 130 g (0.3 lb.) |
| Software, Included on CD | DLL Device Driver for Microsoft(R) Windows PC, Graphical User Interface (GUI) Programs, Sample VI’s and FEMTO Library for Use in LabVIEW |
| System Requirements | Microsoft Windows XP SP 2 or Higher, Intel Pentium III or Equivalent/Higher,512 MB RAM or More,200 MB of Hard Disk Space,USB 1.1 or 2.0 Port |
| Optional Requirements | For development of own application programs an additional development environment like LabVIEW Version 8 (or higher) or C/C++ is required. |
| View and Download Datasheet |
